Size 57mm NEMA 23 High Precision Planetary Gearbox Reduction Brushless DC Motor 24V 120W 80RPM 16.5Nm

$90.00

In Stock:

10

Model: 57AI95-24V-HG50

Weight: 1.45KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

BLDC Geared Motor 80RPM:  This compact size 57mm brushless dc motor has a rated voltage 24v and 120w rated power, integrated with a high precision planetary gearbox of gear ratio 50:1, which can lead to a high torque output 16.5Nm and a low speed 80rpm.

BLDC Geared Motor 80RPM Specification

  • Part Number: 557AI95-24V-HG50
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Curent: 8.0A
  • Rated Power: 120W
  • Insulation Class: B
  • Reduction Ratio: 50:1
  • Rated Speed: 80RPM
  • Rated Torque: 16.5Nm
  • Frame Size: Φ57mm
  • Motor Length: 95mm
  • Gearbox Type: Planetary
  • Gearbox Backlash: 25arcmin
  • Gearbox Length(L): 63mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 22mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 1.7kg

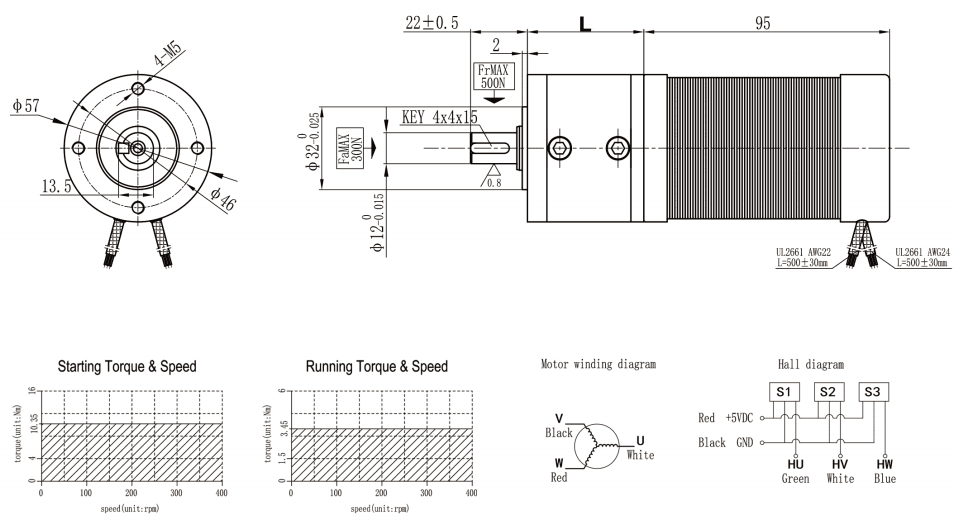

Overall Size

BLDC Geared Motor 80RPM
