Size 86mm NEMA 34 Closed-loop Stepper Motor Waterproof IP65 8.5Nm with 1000PPR Encoder

Size 86mm NEMA 34 Closed-loop Stepper Motor Waterproof IP65 8.5Nm with 1000PPR Encoder

$75.00

In Stock:

10

Model: 86AI115EC-IP65

Weight: 4.5KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

NEMA 34 Closed Loop Stepper Motor IP65: This size 86-115mm NEMA 34 closed-loop stepper motor has 8.5Nm holding torque with an IP65 waterproof rating, which means this IP65 stepper motor can be fully protected against dust, and also can be protected against low pressure jets if water from all directions and limited ingress permitted.

NEMA 34 Closed Loop Stepper Motor IP65 Specification

  • Part Number: 86AI115EC-IP65
  • Step Angle: 1.8deg
  • Holding Torque: 8.5Nm
  • Rated Current/phase: 6.0A
  • Driving Voltage: 24-72VDC
  • Insulation Class: B 130°C
  • Protection Grade: IP65
  • Frame Size: 86x86mm
  • Body Length: 144mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Keyway Length: 25mm
  • Number of Leads: 4
  • Lead Length: 3000mm
  • Weight: 4.5kg

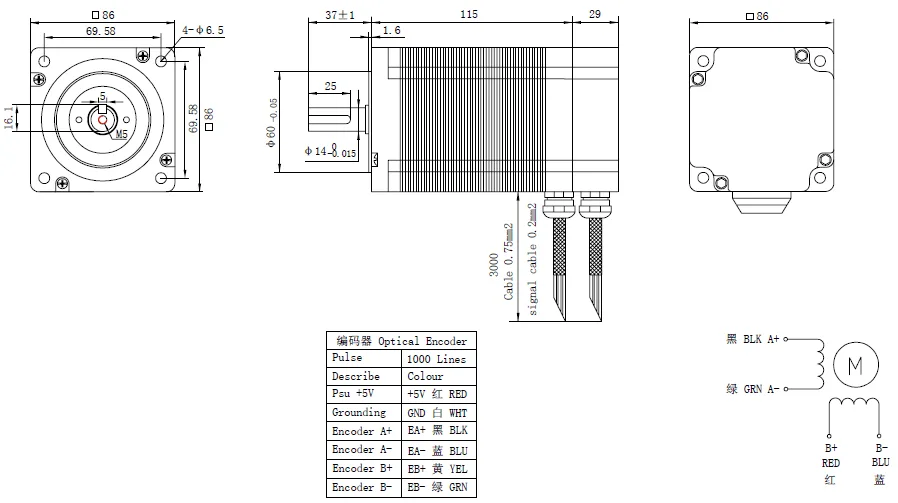

Overall Size

NEMA 34 Closed Loop Stepper Motor IP65
