Size 57mm NEMA 23 High Precision Planetary Gearbox Reduction Brushless DC Motor 24V 60W 800RPM 0.75Nm

$60.00

In Stock:

10

Model: 57AI55-24V-HG5

Weight: 1.1KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUAI

Ships From China

10 in stock (can be backordered)

57mm Geared Motor 800RPM:  This compact size 57mm brushless dc motor has a rated voltage 24v and 60w power, integrated with a high precision planetary gearbox of gear ratio 5:1, which can lead to a high torque output 0.75Nm and a low speed 800rpm.

57mm Geared Motor 800RPM Specification

  • Part Number: 57AI55-24V-HG5
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Curent: 3.7A
  • Rated Power: 60W
  • Insulation Class: B
  • Reduction Ratio: 5:1
  • Rated Speed: 800RPM
  • Rated Torque: 0.75Nm
  • Frame Size: Φ57mm
  • Motor Length: 55mm
  • Gearbox Type: Planetary
  • Gearbox Backlash: 15arcmin
  • Gearbox Length(L): 45mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 22mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 1.1kg

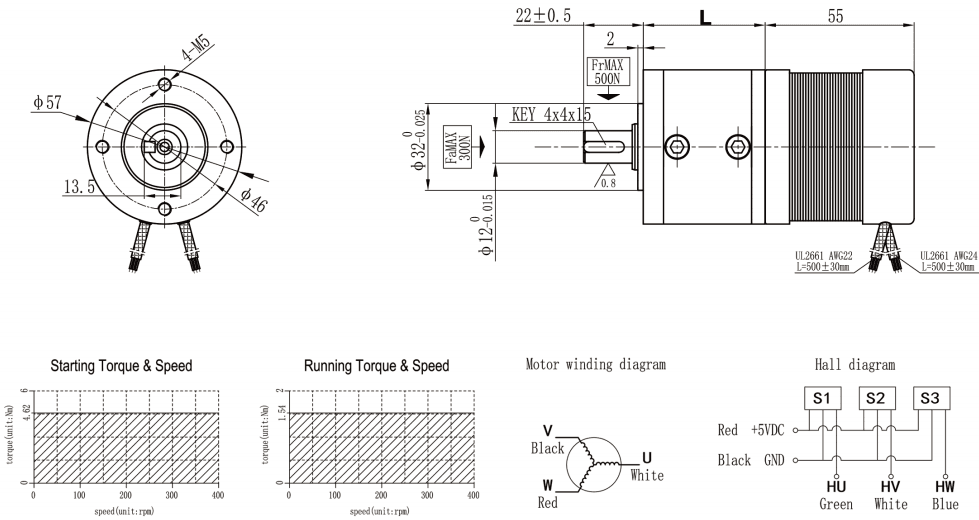

Overall Size

57mm Geared Motor 800RPM
