57mm Brushelss Servo DC Motor 24V 200W 3000RPM 0.6Nm with 1000PPR Encoder

$95.00

In Stock:

10

Model: 57HB101-2430E

Weight: 1.5KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

10 in stock

57mm BLDC Servo Motor: This size 57mm electric servo motor is a standard 24 voltage brushless DC servo motor with 1000PPR incremental encoder. It generates a high power 200W and a strong torque 0.6Nm at rated speed 3000RPM.

57mm BLDC Servo Motor

  • Part Number: 57HB101-2430E
  • Rated Voltage: 24V
  • Rated Curent: 12.0A
  • Rated Power: 200W
  • No-loaded Speed: 3700RPM
  • Rated Speed: 3000RPM
  • Rated Torque: 0.6Nm
  • Insulation Class: B
  • Insulation Class: B
  • Sensor Type: Hall
  • Frame Size: 57x57mm
  • Motor Length: 125mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 22mm
  • Encoder Type: Incremental
  • Encoder Resolution: 1000PPR

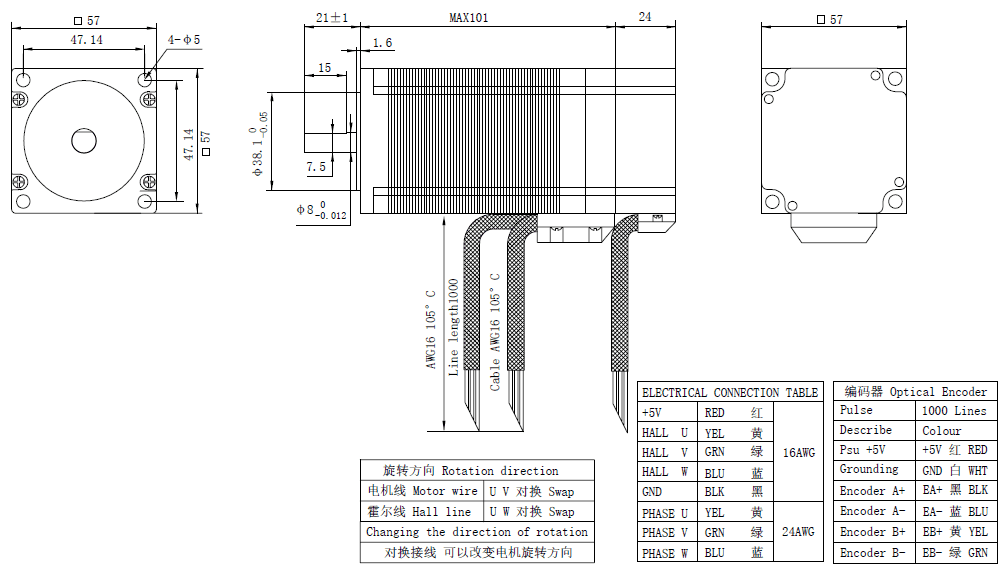

Overall Size

57mm BLDC Servo Motor
