57mm-bldc-motor-with-brake-200w-3000rpm-24v

24V 200W 3000RPM 0.6Nm 57mm Brushless DC Motor BLDC with Electromagnetic Brake

$85.00

In Stock:

Model: 57AI101-2430-YS

Weight: 1.5KG

Certificated: ISO, CE, RoHS

Ships From China

57mm BLDC Motor with Brake: This electric dc engine is a 24V brushless DC motor with 3 phases and 8 poles. It generates a rated speed of 3000rpm and torque of 0.6Nm output. A 24V electromagnetic brake is assembled for this bldc motor so it is very suitable for the machines that need frequently stop and run or vertical operation.

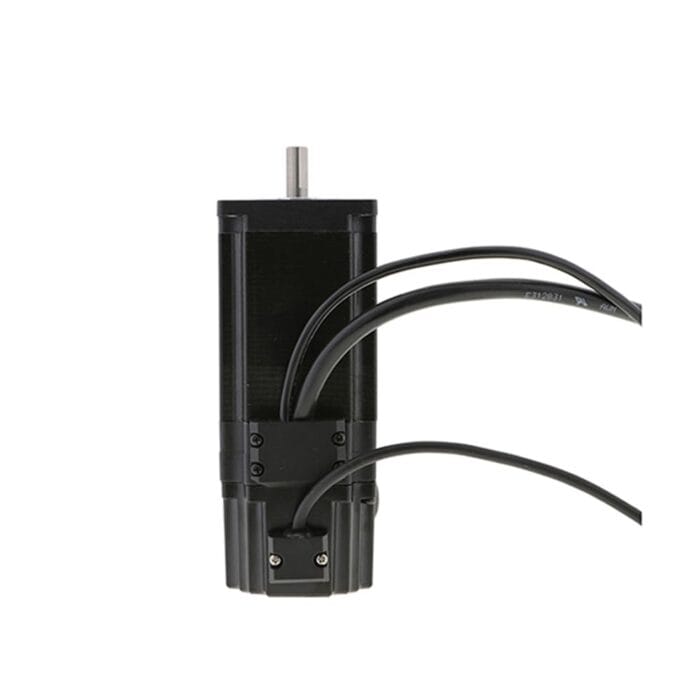

57mm BLDC Motor with Brake

  • Part Number: 57AI101-2430-YS
    No. of Phases: 3
    No. of Poles: 8
    Rated Voltage: 24V
    Rated Speed: 3000RPM
    No-loading Speed: 3700RPM
    Rated Torque: 0.6Nm
    Rated Curent: 12.0A
    Rated Power: 200W
    Insulation Class: B
    Brake Type: Electromagnetic
    Brake Voltage: 24VDC
    Frame Size: 57x57mm
    Body Length: 140mm(including brake)
    Shaft Diameter: Φ8mm
    Shaft Length: 21mm
    Number of Leads: 8
    Lead Length: 1000mm
    Sensor: Hall Sensor
    Weight: 1.4kg

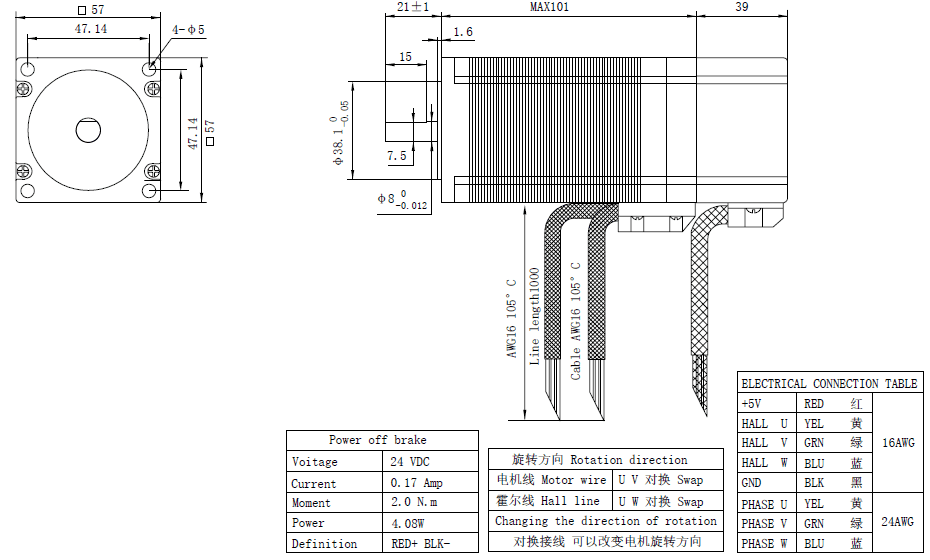

Overall Size

57mm BLDC Motor with Brake
