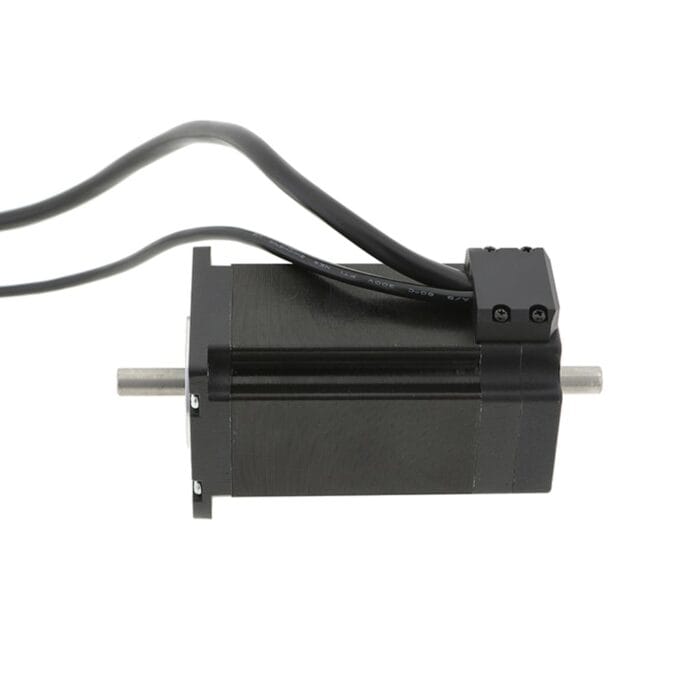

57mm Brushless DC Motor Dual Shaft BLDC 24V 200W 3000RPM 0.6Nm with Rear Shaft

$55.00

In Stock:

10

Model: 57HB101-2430-B

Weight: 1.2KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

57mm BLDC Motor Rear Shaft: This size 57mm 3 phase brushless dc dual shaft motor has a body length 101mm, rated voltage 24v and a moderate rated speed 3000rpm, which can generate 200 watts strong power and 0.6Nm big torque output. A length of 15mm rear shaft is available. Its high performance with reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

57mm BLDC Motor Rear Shaft Specification

  • Part Number: 1.2
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Speed: 3000RPM
  • No-loading Speed: 3700RPM
  • Rated Torque: 0.6Nm
  • Rated Curent: 12.0A
  • Rated Power: 200W
  • Insulation Class: B
  • Frame Size: 57x57mm
  • Body Length: 101mm
  • Front Shaft Diameter: Φ8mm
  • Front Shaft Length: 21mm
  • Rear Shaft Diameter: Φ8mm
  • Rear Shaft Length: 15mm
  • Number of Leads: 8
  • Lead Length: 1000mm
  • Sensor: Hall Sensor
  • Weight: 1.2kg

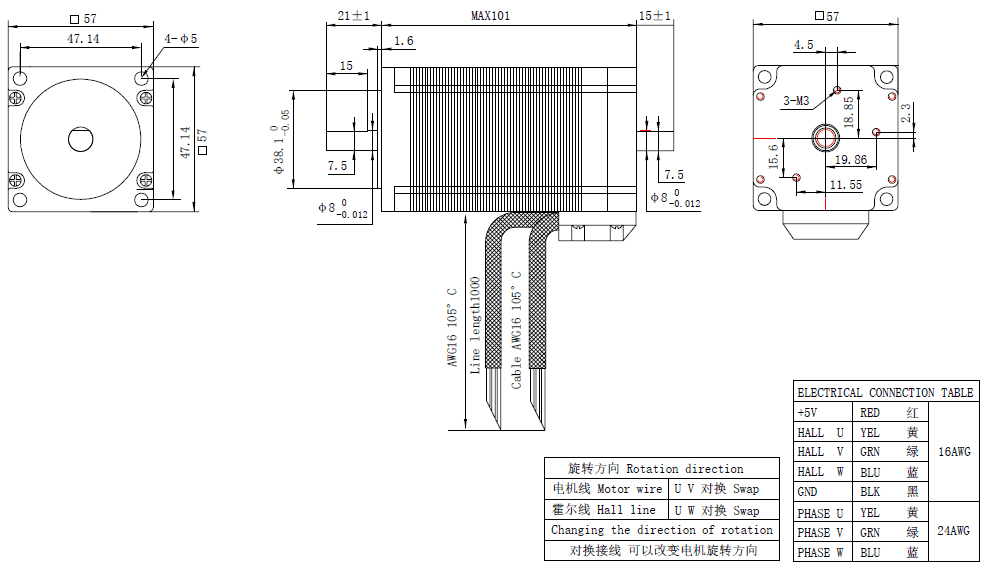

Overall Size

57mm BLDC Motor Rear Shaft
