57mm BLDC Motor 3500RPM 24V 220W 0.6Nm

Size 57mm NEMA23 Brushless DC Motor 24V 220W 3500RPM 0.6Nm 57x89mm

$35.00

In Stock:

10

Model: 57AI89-2435

Weight: 1.1KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

57mm BLDC Motor 3500RPM 24V: This size 57mm 3 phase brushless dc motor has a body length 89mm, rated voltage 24vdc and a moderate rated speed 3500rpm, which can reach 220w power and 0.6Nm torque output. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

57mm BLDC Motor 3500RPM 24V Specification

57mm BLDC Motor 3500RPM 24V

  • Part Number: 57AI89-2435
  • No. of Phases: 3
  • No. of Poles: 4
  • Rated Voltage: 24V
  • Rated Speed: 3500RPM
  • No-loading Speed: 4500RPM
  • Rated Torque: 0.6Nm
  • Rated Curent: 14.0A
  • Rated Power: 220W
  • Insulation Class: B
  • Frame Size: 57x57mm
  • Body Length: 89mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 25mm
  • Number of Leads: 8
  • Lead Length: 1000mm
  • Sensor: Hall Sensor
  • Weight: 1.1kg

Overalll Size

If you need a PDF data sheet, please feel free to email: info@frankhumotor.com.

Reviews

There are no reviews yet.

Be the first to review “Size 57mm NEMA23 Brushless DC Motor 24V 220W 3500RPM 0.6Nm 57x89mm”

Your email address will not be published. Required fields are marked *

Tag: 220w, 3500rpm, high power 57mm bldc motor

Related Products

  • 57mm DC Brushless Motor 36V 3600RPM 150W

    Size 57mm NEMA 23 Brushless DC Motor 36V 150W 3600RPM 0.4Nm 57x95mm

    $33.00

  • size-42mm-nema17-high-precision-planetary-gearbox-reduction-brushless-dc-motor-24v-64w-750rpm-0-8nm-42ai70-2430-fg4

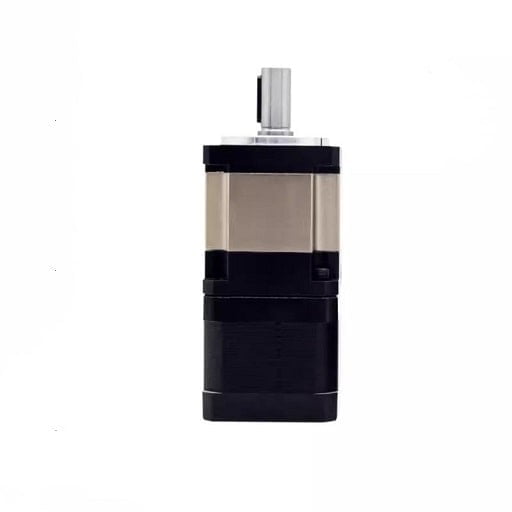

    Size 42mm NEMA17 High Precision Planetary Gearbox Reduction Brushless DC Motor 24V 60W 750RPM 0.8Nm
