Size 42mm NEMA 17 Stepper Motor Bipolar 1.8deg 0.59Nm 2A 42x48mm 1m Cable with JST XH Connector

Size 42mm NEMA 17 Stepper Motor Bipolar 1.8deg 0.59Nm 2A 42x48mm 1m Cable with JST XH Connector

$7.50

In Stock:

50

Model: 42AI48-2004XH

Weight: 0.45KG

Certificated: ISO, CE, RoHS

Ships From China

50 in stock (can be backordered)

48mm 2A Stepper Motor: This size 42mm NEMA 17 hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution) and a moderate body length 48mm. Each phase draws a low current 2A, allowing for a strong holding torque of 0.59Nm. A 1000mm cable with JST XH 4 pin 2.54mm pitch connector is available.

48mm 2A Stepper Motor Specification

48mm 2A Stepper Motor

  • Part Number: 42AI48-2004XH
  • Step Angle: 1.8deg
  • Bipolar/Unipolar: Bipolar
  • Holding Torque: 0.59Nm
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.4ohms
  • Inductance: 3.0mH
  • Driving Voltage: 12-24VDC
  • Frame Size: 42x42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 400g
  • Stepper Drive: FLKH2D1228DC

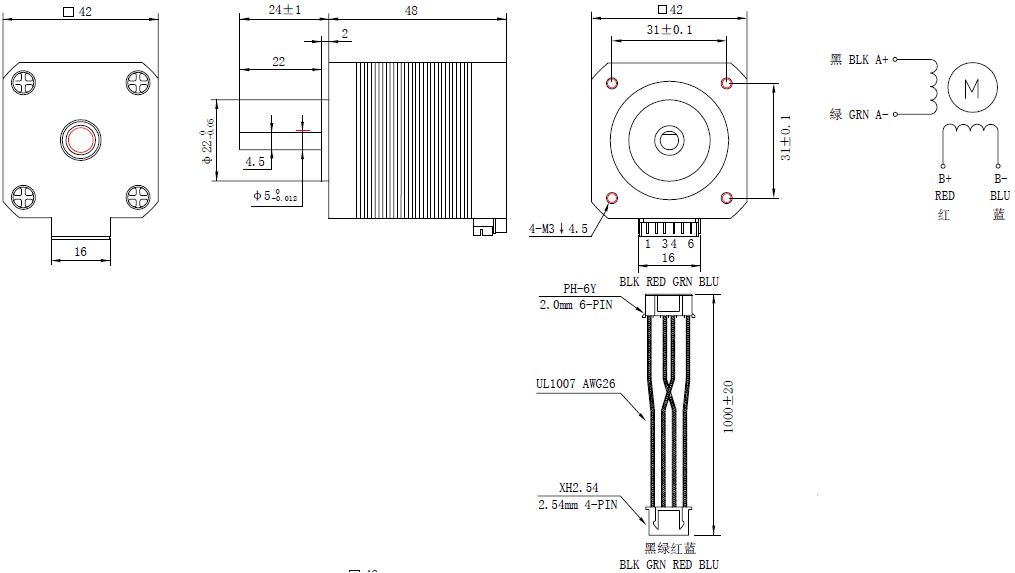

Overall Size

Motor 4 Leads Connection: A+(Black), A-(Green); B+(Red), B-(Blue)

If you need a PDF data sheet, please send the email to: info@frankhumotor.com!
