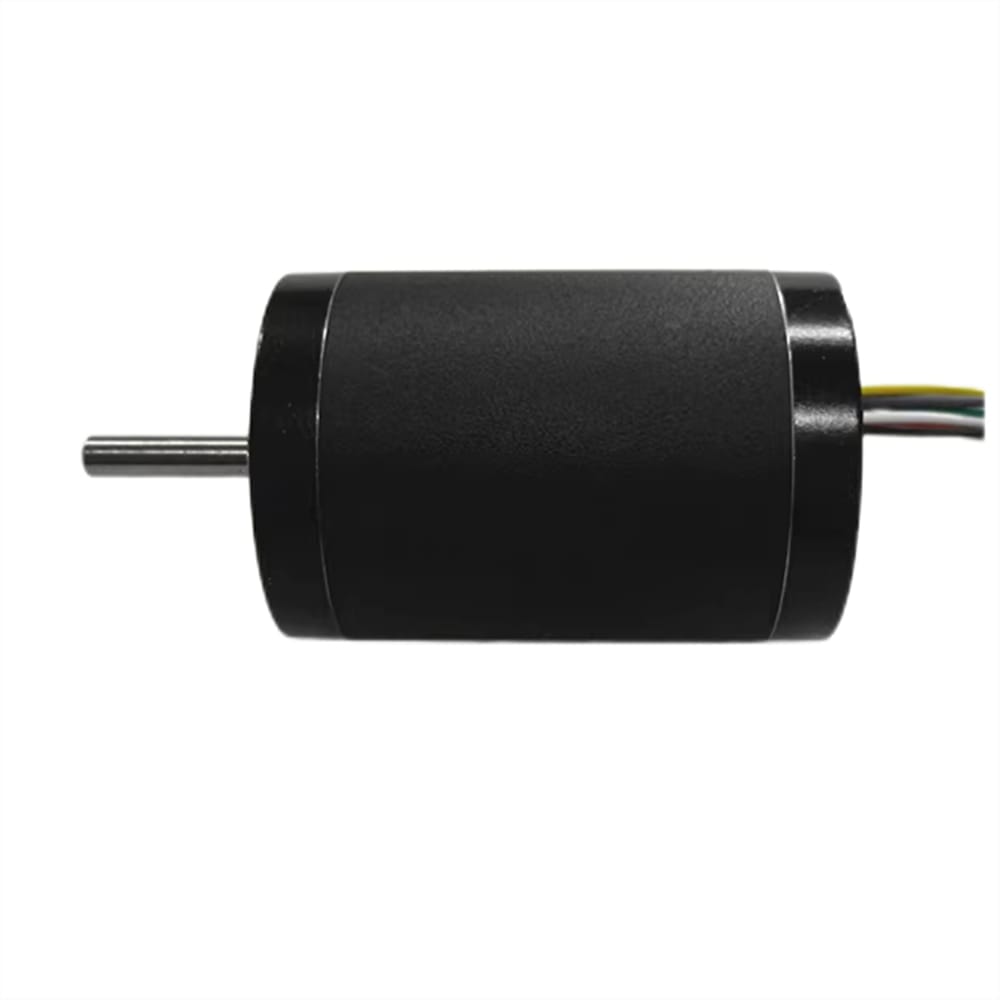

42mm Round BLDC Motor: This size 42mm 3 phase brushless dc motor has a body length 93mm, rated voltage 24vdc and a rated speed 4500rpm, which can reach 60w rated power and 0.12Nm rated torque output.. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

42mm Round BLDC Motor Specification

• Part Number: 42AI93-2445
• No. of Phases: 3
• No. of Poles: 8
• Rated Voltage: 24V
• Rated Speed: 4500RPM
• No-loading Speed: 6000RPM
• Rated Torque: 0.11Nm
• Rated Curent: 3.5A
• Rated Power: 60W
• Insulation Class: B
• Frame Size: Φ42mm
• Body Length: 93mm
• Shaft Diameter: Φ5mm
• Shaft Length: 24mm
• Number of Leads: 8
• Lead Length: 300mm
• Sensor: Hall Sensor
• Weight: 0.8kg

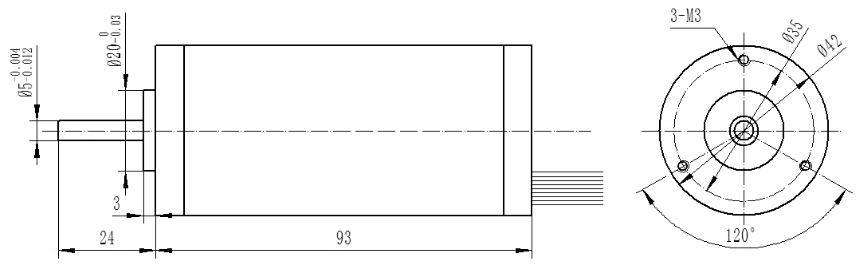

Overall Size

Motor Wires: U: orange, V: Grey, W: Brown

Hall Wires: +5V: Red, GND: Black, HA: Yellow, HB: Green, HC: White
