42MM Geared Motor 100RPM: This compact size 42mm brushless dc motor has a rated voltage 24v and 50w rated power, integrated with a high precision planetary gearbox of gear ratio 40:1, which can lead to a high torque output 5.0Nm and a good rated speed 100rpm. This geared dc motor is the excellent solution for precise motion control applications that require high torque, high precision, maximum efficiency and compact structure, such as robotics, medical equipment, semiconductor, and other industrial applications, etc.

42mm Geared Motor 100RPM Specification

• Part Number: 42AI61-2440-KGS40
• No. of Phases: 3
• No. of Poles: 8
• Rated Voltage: 24V
• Rated Curent: 4.0A
• Rated Power: 50W
• Insulation Class: B
• Reduction Ratio: 40:1
• Rated Speed: 100RPM
• Rated Torque: 5.0Nm
• Frame Size: 42x42mm
• Motor Length: 61mm
• Gearbox Type: Planetary
• Gearbox Backlash: 10arcmin
• Gearbox Length(L): 51mm
• Shaft Diameter: Φ8mm
• Shaft Length: 21.5mm
• Number of Leads: 8
• Lead Length: 500mm
• Sensor: Hall Sensor
• Weight: 0.75kg

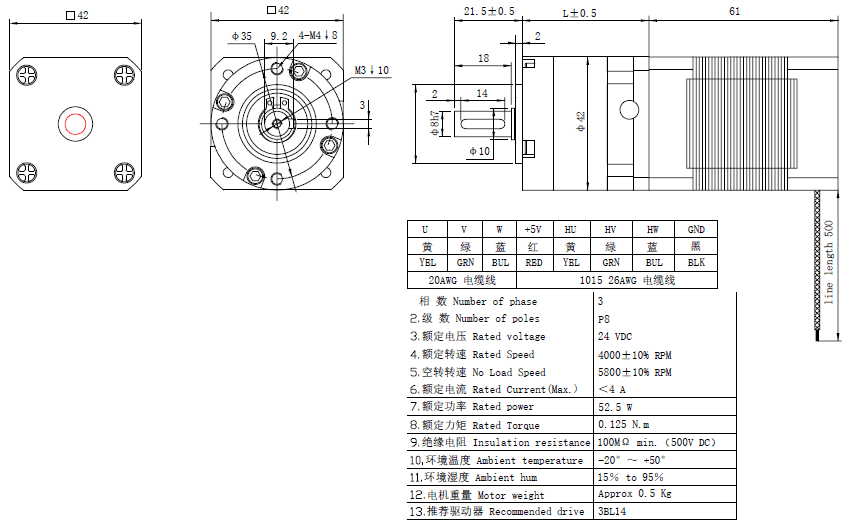

Overall Size
