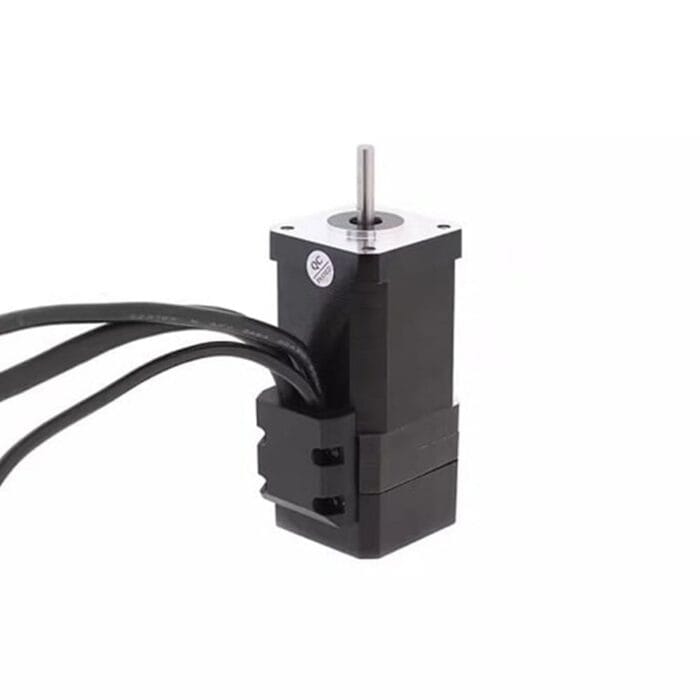

42mm Brushelss Servo DC Motor 24V 60W 3000RPM 0.2Nm with 1000CPR Encoder

$85.00

In Stock:

10

Model: 42HS70-2430E

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock

42mm BLDC Servo Motor: This size 42mm electric servo motor is a standard 24 voltage brushless DC servo motor with 1000CPR incremental encoder. It generates a high power 60W and a strong torque 0.2Nm at rated speed 3000RPM.

42mm BLDC Servo Motor

  • Part Number: 42HS70-2430E
    Rated Voltage: 24V
    Rated Curent: 3.5A
    Rated Power: 60W
    No-loaded Speed: 4000RPM
    Rated Speed: 3000RPM
    Rated Torque: 0.2Nm
    Insulation Class: B
    Sensor Type: Hall
    Frame Size: 42x42mm
    Motor Length: 90mm
    Shaft Diameter: Φ5mm
    Shaft Length: 24mm
    Encoder Type: Incremental
    Encoder Resolution: 1000CPR

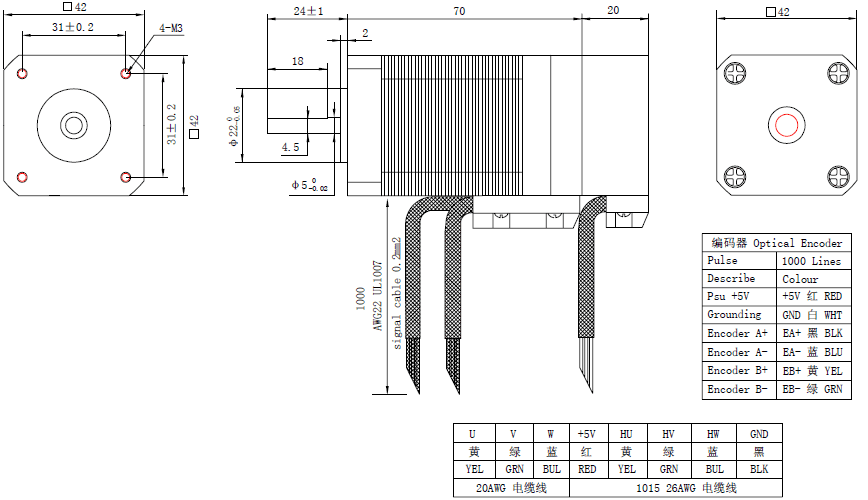

Overall Size

42mm BLDC Servo Motor
