24V 60W 3000RPM 0.2Nm Brushless DC Motor BLDC with Electromagnetic Brake

$75.00

In Stock:

10

Model: 42HB70-2430YS

Weight: 0.8KG

Certificated: ISO, CE, RoHS

Brand: FRANKHUMOTOR

Ships From China

10 in stock (can be backordered)

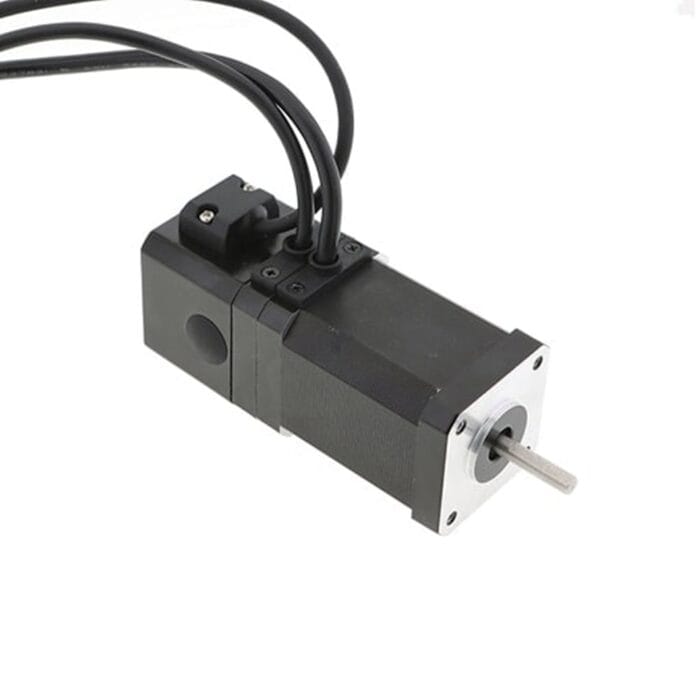

42mm BLDC Motor with Brake: This electric dc engine is a 24V brushless DC motor with 3 phases and 8 poles. It generates a rated speed of 3000rpm and torque of 0.2Nm output. A 24V electromagnetic brake is assembled for this bldc motor so it is very suitable for the machines that need frequently stop and run or vertical operation.

42mm BLDC Motor with Brake

  • Part Number: 42HB70-2430YS
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Speed: 3000RPM
  • No-loading Speed: 4000RPM
  • Rated Torque: 0.2Nm
  • Rated Curent: 3.5A
  • Rated Power: 60W
  • Insulation Class: B
  • Brake Type: Electromagnetic
  • Brake Voltage: 24VDC
  • Frame Size: 42x42mm
  • Body Length: 104mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • Number of Leads: 8
  • Lead Length: 1000mm
  • Sensor: Hall Sensor
  • Weight: 0.8kg

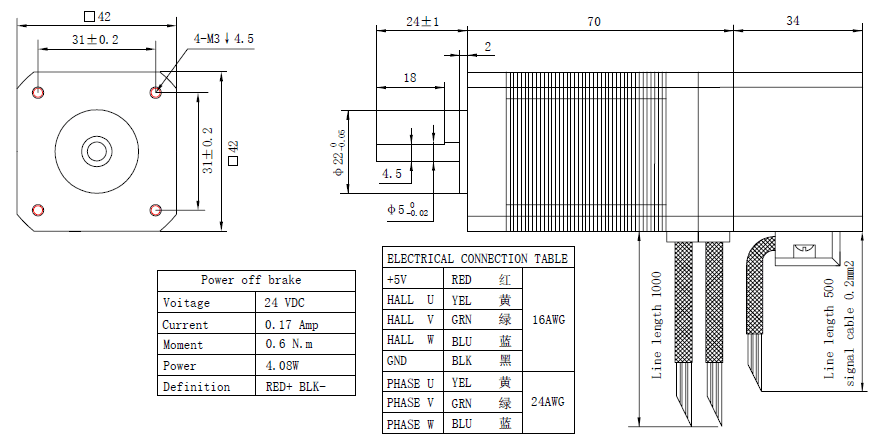

Overall Size

42mm BLDC Motor with Brake
