42mm-bldc-motor-rear-shaft-brushless-60w-3000rpm

42mm Brushless DC Motor Dual Shaft BLDC 24V 640W 3000RPM 0.2Nm with Rear Shaft

$25.00

In Stock:

10

Model: 42HS70-2430D

Weight: 0.55KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

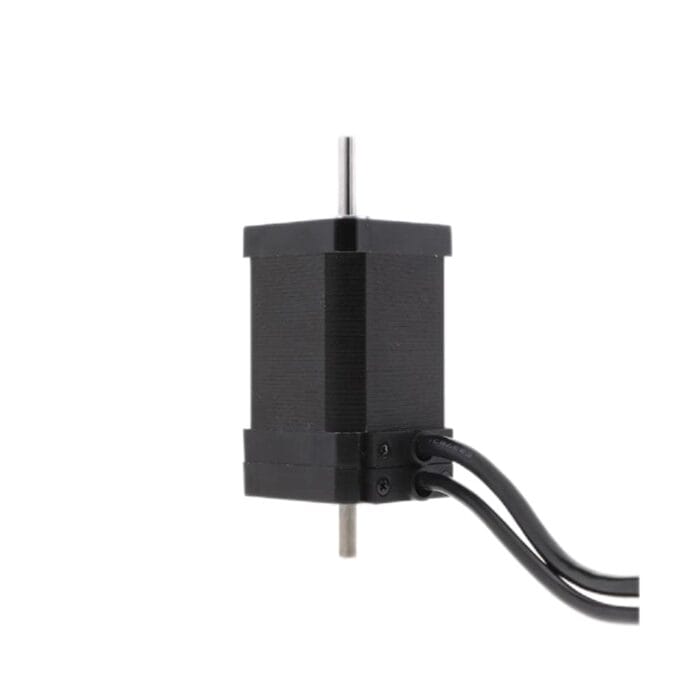

42mm BLDC Motor Rear Shaft: This size 42mm 3 phase brushless dc dual shaft motor has a body length 70mm, rated voltage 24v and a moderate rated speed 3000rpm, which can generate 64 watts strong power and 0.2Nm big torque output. A length of 16mm rear shaft is available. Its high performance with reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

42mm BLDC Motor Rear Shaft Specification

  • Part Number: 42HS70-2430D
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Speed: 3000RPM
  • No-loading Speed: 4000RPM
  • Rated Torque: 0.2Nm
  • Rated Curent: 3.5A
  • Rated Power: 64W
  • Insulation Class: B
  • Frame Size: 42x42mm
  • Body Length: 70mm
  • Front Shaft Diameter: Φ5mm
  • Front Shaft Length: 24mm
  • Rear Shaft Diameter: Φ5mm
  • Rear Shaft Length: 16mm
  • Number of Leads: 8
  • Lead Length: 1000mm
  • Sensor: Hall Sensor
  • Weight: 0.55kg

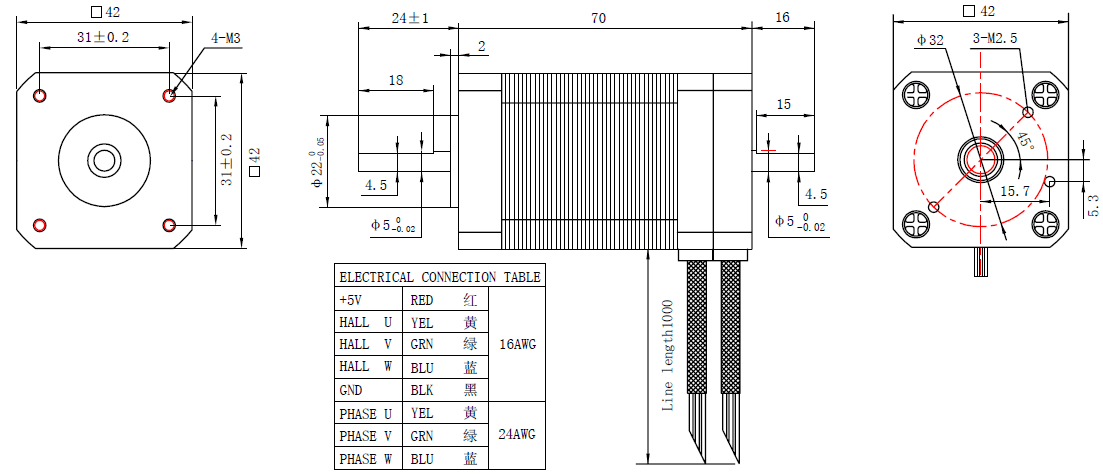

Overall Size

42mm BLDC Motor Rear Shaft
