36v-brushless-dc-motor

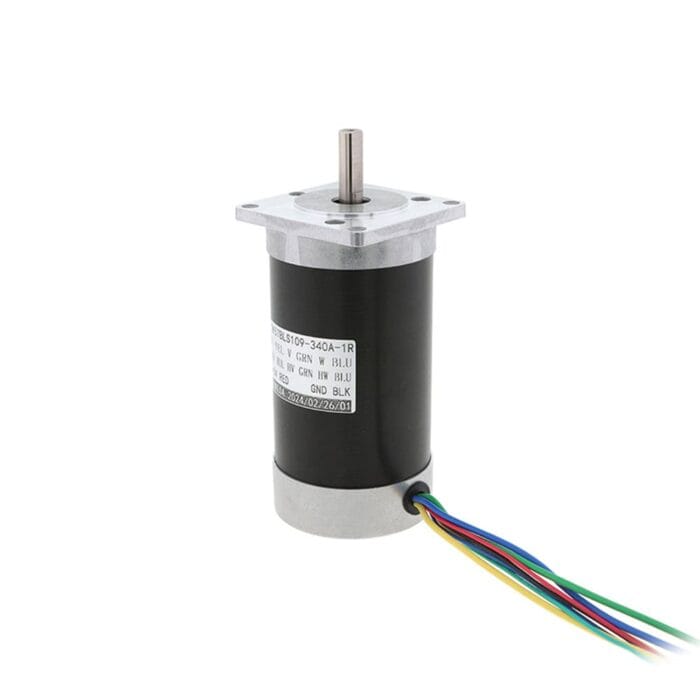

36V 184W 4000RPM 0.44Nm 57x109mm DC Brushless Motor

$50.00

In Stock:

10

Model: 57BLS109-340A-1R

Weight: 0.95KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

This size 57mm 3 phase brushless dc motor has a body length 109mm, rated voltage 36v and a moderate rated speed 4000rpm, which can reach 184w power and 0.44Nm torque output. Its high performance with square body and reasonable design makes this bldc motor widely used for textile machines, robotics, autobikes, cooling fans, pumps, household appliances, and other industrial applications, etc.

36v brushless dc motor Specification

  • Part Number: 57BLS109-340A-1R
  • No. of Phases: 3
  • No. of Poles: 4
  • Rated Voltage: 36V
  • Rated Speed: 4000RPM
  • No-loading Speed: 4700RPM
  • Rated Torque: 0.44Nm
  • Rated Curent: 7.3A
  • Rated Power: 184W
  • Insulation Class: B
  • Frame Size: 57x57mm
  • Body Length: 109mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 26mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 1.2kg

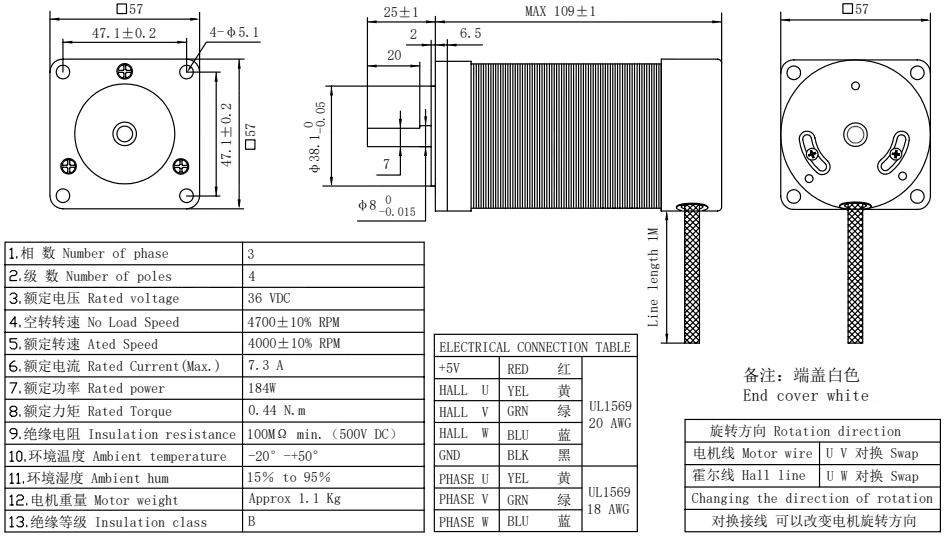

Overall Size

36V Brushless DC Motor
