35mm Round Precision Planetary Gearbox

35mm Precise Round Planetary Gearbox

Price range: $50.00 through $60.00

In Stock:

100

Model: 35AI-KGS

Weight: 0.3KG

Certificated: ISO, CE, RoHS

Ships From China

This size 35mm high precision round planetary gearbox has a gear ratio 3 to 210 and very low backalsh from 15arc-min to 25arc-min. It’s an excellent choice for applications that require good accuracy and stable reliability at an exceptional value. Wha’s more, this inline planetary gearbox has a built-in input shaft coupling which can match any standard NEMA 14 stepper motor and brushless dc motor or other motors.

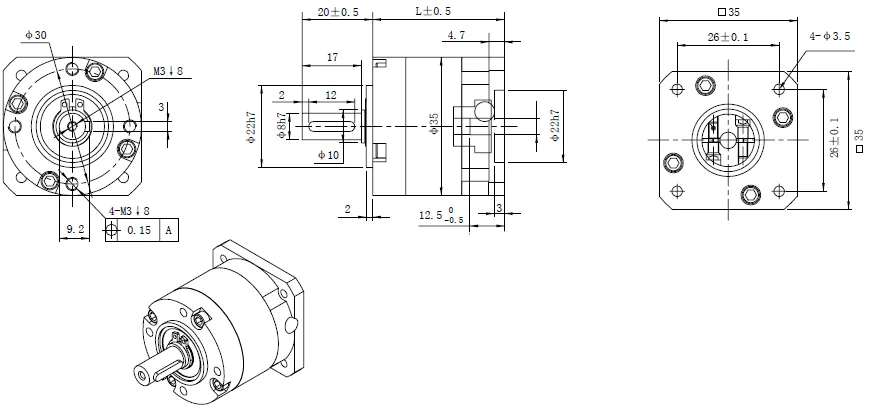

35mm Precise Planetary Gearbox:

Gear Ratio: 3/4/5/7, backlash 15arcmin, gearbox length 40mm
Gear Ratio: 9/15/20/25/30/35/42, backlash 20arcmin, gearbox length 49.5mm
Gear Ratio: 45/100/120/140/150/175/210, backlash 25arcmin, gearbox length 59mm

35mm Precise Planetary Gearbox
