Size 57mm NEMA 23 High Precision Planetary Gearbox Reduction Brushless DC Motor 24V 100W 400RPM 2.6Nm

$80.00

In Stock:

10

Model: 57AI75-24V-HG10

Weight: 1.25KG

Certificated: ISO, CE, RoHS

Ships From China

10 in stock (can be backordered)

24V Geared Motor 400RPM:  This compact size 57mm brushless dc motor has a rated voltage 24v and 100w power, integrated with a high precision planetary gearbox of gear ratio 10:1, which can lead to a high torque output 2.6Nm and a low speed 400rpm.

24V Geared Motor 400RPM Specification

  • Part Number: 557AI75-24V-HG10
  • No. of Phases: 3
  • No. of Poles: 8
  • Rated Voltage: 24V
  • Rated Curent: 6.4A
  • Rated Power: 100W
  • Insulation Class: B
  • Reduction Ratio: 10:1
  • Rated Speed: 400RPM
  • Rated Torque: 2.6Nm
  • Frame Size: Φ57mm
  • Motor Length: 75mm
  • Gearbox Type: Planetary
  • Gearbox Backlash: 15arcmin
  • Gearbox Length(L): 45mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 22mm
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 1.25kg

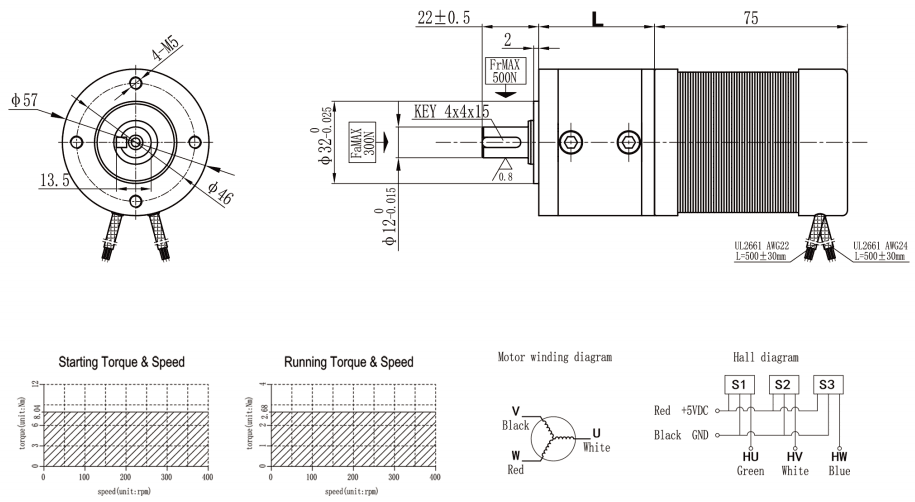

Overall Size

24V Geared Motor 400RPM
