16mm-geared-motor-120rpm-0-038nm-12v

Size Φ16mm DC Geared Motor 12V 120RPM 0.038Nm 1.3W

$15.00

In Stock:

100

Model: 16YX18-12V-PG100

Weight: 0.03KG

Certificated: ISO, CE, RoHS

Ships From China

100 in stock (can be backordered)

16mm Geared Motor 120RPM: This micro geared engine is a standard 12 voltage brushed DC geared motor, generating 0.038Nm of rated torque at rated speed 90RPM. It is suitable for high torque or low speed applications. Combined with a 100:1 planetary gearbox, this electric motor will provide greater efficiency, higher torque, and quieter output.

16mm Geared Motor 120RPM Specification:

  • Part Number: 16YX18-12V-PG100
  • Rated Voltage: 12VDC
  • Rated Power: 1.3W
  • Reduction Ratio: 100:1
  • Rated Torque: 0.038Nm
  • No-load Speed: 120RPM
  • Rated Speed: 90RPM
  • Rated Current: 0.11A
  • Insulation Class: B
  • Body Length: 32.6mm
  • Shaft Diameter: Φ3mm
  • Shaft Length: 9.8mm
  • D-cut Length: 6mm
  • Weight: 0.03KG

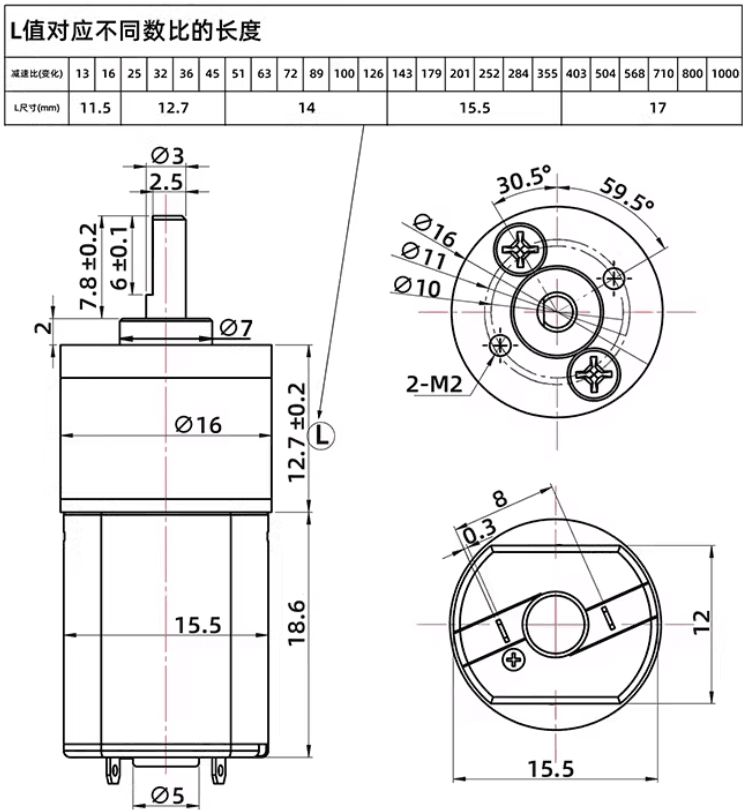

Overall Size

16mm Geared Motor 120RPM
