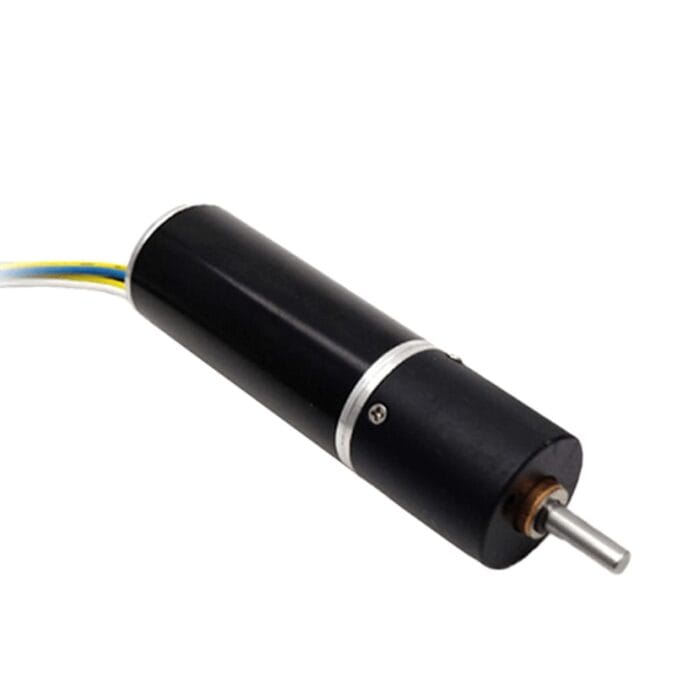

16mm Geared DC Motor 24V: This 16AI36-24V-PG series brushless 24v dc geared coreless motor is intagrated with a size 16mm round planetary gearbox, which leads to speed range of 3RPM to 2500RPM and holding torque upto 0.3Nm. Because of the coreless & brushless design, this micro geared dc motor has higher efficiency, higher power-to-weight ratio, faster response time, longer lifespan, more merits compared to general dc motors. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.

16mm Geared DC Motor 24V Specification

Gear Ratio 361:1, no-load speed 31rpm, rated speed 26rpm, rated torque 0.3Nm, rated current 0.2A, rated power 3.5W, gearbox length(L) 23mm

Gear Ratio 256:1, no-load speed 45rpm, rated speed 38rpm, rated torque 0.3Nm, rated current 0.2A, rated power 3.5W, gearbox length(L) 23mm

Gear Ratio 107:1, no-load speed 110rpm, rated speed 90rpm, rated torque 0.3Nm, rated current 0.2A, rated power 3.5W, gearbox length(L) 19.5mm

Gear Ratio 64:1, no-load speed 180rpm, rated speed 150rpm, rated torque 0.15Nm, rated current 0.2A, rated power 3.5W, gearbox length(L) 19.5mm

Overall Size
